| Golfvorm | Sinus | ||
| Automatic Voltage Regulation (AVR) | Ja | ||
| Auto-herstart | Ja | ||
| Geluidsalarm(en) | Ja | ||
| Hoorbare alarmstanden | Batterijvervanging | ||
| UPS-topologie | Dubbele conversie (online) | ||
| Gewicht verpakking | 39,3 kg | ||
| Hoogte verpakking | 246 mm | ||
| Diepte verpakking | 871 mm | ||
| Breedte verpakking | 599 mm | ||
| Aantal per pallet | 6 stuk(s) | ||
| Diepte | 635 mm | ||
| Breedte | 432 mm | ||
| Hoogte | 85 mm | ||
| Gewicht | 31,3 kg | ||
| Soort serieële aansluiting | RJ-45 | ||
| Seriële interface | Ja | ||
| SmartSlot | Ja | ||

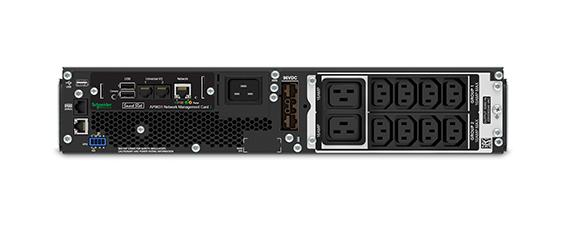

| Stopcontacttypes | C13 stekker, C19 stekker | ||
| USB-poort | Ja | ||
| Lengte snoer | 2,44 m | ||
| Stekker | C20 stekker | ||
| Output power capacity | 3000 VA | ||
| Spanning | 230 V | ||
| Frequentie | 40 - 70 Hz | ||
| Uitgang operation voltage (max) | 240 V | ||
| Uitgang operation voltage (min) | 220 V | ||
| Efficientie | 92 procent | ||
| Accu/Batterij oplaadtijd | 3 uur | ||
| Ingang operation voltage (max) | 275 V | ||
| Ingang operation voltage (min) | 100 V | ||
| Uitgangsvermogen | 2700 W | ||
| Surge energy rating | 340 J | ||
| Stroomspanning bescherming | Overbelasting | ||
| Output voltage THD | 2 procent | ||
| Crest factor | 3:1 | ||
| Emergency Power Off (EPO) | Ja | ||
| Acculevensduur (max) | 5 jaar | ||
| Batterij capaciteit | 505 VAh | ||

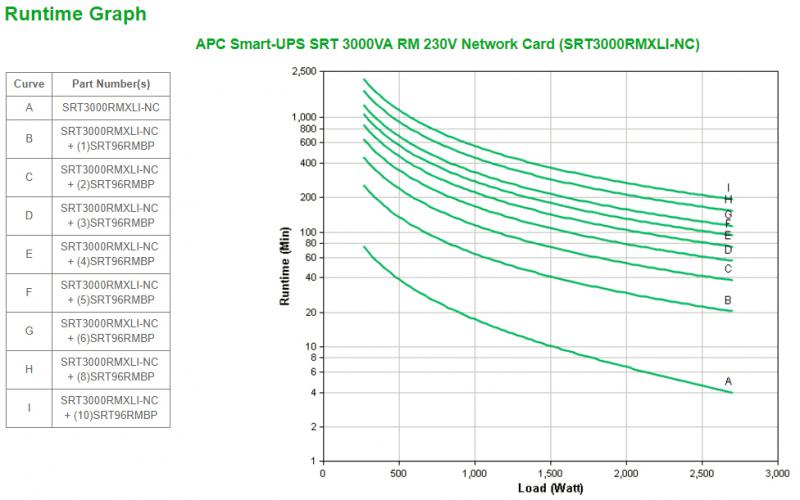

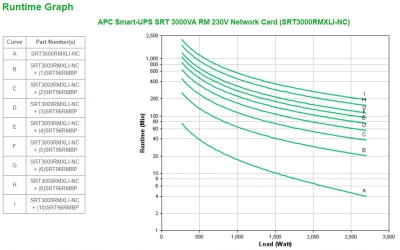

| Typische backup tijd op halve lading | 11,8 min | ||
| Typische backup tijd op volledige lading | 4 min | ||
| Hot-swap batterij | Ja | ||
| Automatische batterij test | Ja | ||
| Koude start | Ja | ||
| Energie-opslagtechnologie accu/batterij | Sealed Lead Acid (VRLA) | ||
| RoHS compliance | Ja | ||
| Certificering | CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA | ||
| Output frequentie | 50/60 Hz | ||
| Spanningsbeveiliging | Ja | ||
| Vormfactor | Rackmontage | ||
| Internationale veiligheidscode (IP) | IP20 | ||
| Kleur van het product | Zwart | ||
| Hoogte, in bedrijf | 0 - 3000 m | ||
| Temperatuur bij opslag | -15 - 45 °C | ||
| Temperatuur, in bedrijf | 0 - 40 °C | ||
| Relatieve luchtvochtigheid, in bedrijf | 0 - 95 procent | ||
| Hoogte bij opslag | 0 - 15000 m | ||
| Luchtvochtigheid bij opslag | 0 - 95 procent | ||
